FRESH-KEY RTHL

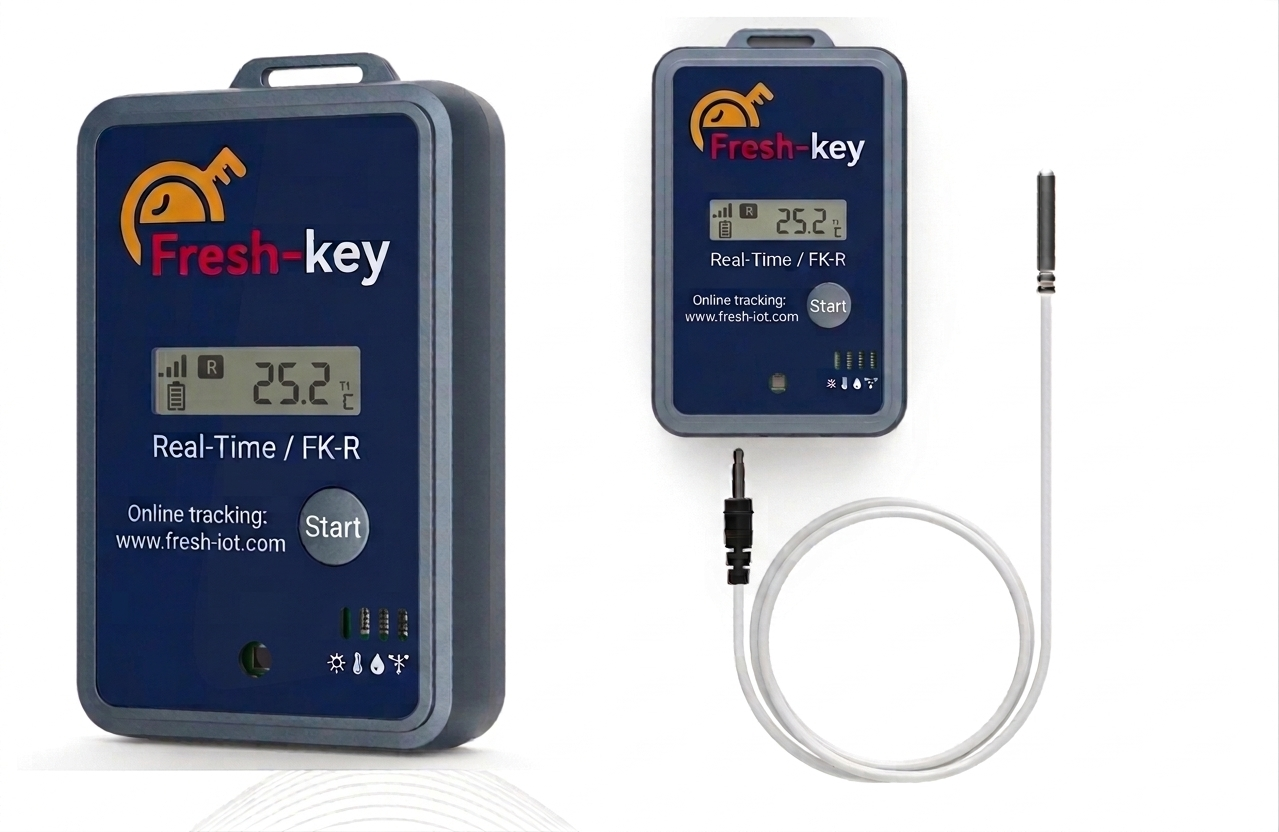

Real-time disposable location/temperature/humidity/light data logger

RTHL



Fresh-key RTHL is made for real-time temperature, humidity, location and light monitoring, they are dispos-able devices specified for national and international freshfood shipments.

With only one button operation, they are quite easy to be deployed. While they are working, you can track all temperature, humidity, location and light information of your shipment online through any web browser.

You may also register with our online system to manage multiple shipments, maintain all history and collaborate with your partners.

The XL Lux senses light, alerts you when your products are at risk on the road and records when doors are opened at the dock.



__________________________________________________

Temperature, humidity, location and light

Real-time and disposable

Track information online 24/7

Alert notifications based on temperature and location

Report in excel or PDF available

Network compatible within more than 200 countries

__________________________________________________



Network :     Cellular 850/900/1800/1900 MHz GSM

Battery Life* :    15 days operation with temperature, humidity, location and light measurements reported at 15 min interval

                            60 days operation with temperature, humidity, location and light measurements reported at 60 min interval

LED :     Blue for active, Red for alarm

Size :     53 mm x 85 mm x 16 mm

Weight :     0.25 lbs (110 g)

SIM :     Internal embedded

Memory Depth :     12,000 readings, loop record, overwritten

Temperature range :     -20° C to +60° C operation, -20° C to +60° C storage

Light Sensor :     0.01LUX-83KLUX

Temperature accuracy :     ±0.5° C (-10~+60° C)         ±2° C (Other range)

Humidity range :     0% to 99% operation, 0% to 99% storage, non-condensing

Humidity accuracy :     ±5% (20%~80%)         ±8% (other range)

Location service :     LBS base station positioning

Approvals:    FCC, UL, RoHs, CE, Food grade material (ABS)

Light Sensor (X, Y):

X = Sensitivity (Lux), Y = Duration (sec)
BRT Indication = Light Intensity perpendicular to blinking LED side exceeds X Lux for greater than Y continuous seconds
DRK Indication = Light intensity perpendicular to blinking LED side is below X Lux for greater than 30 continuous seconds



* May vary due to different condition of environment.
