Real-time Data Logger
Real-Time temperature Humidity Location and Light data logger
Fresh-key RTH is made for real-time temperature, humidity and location monitoring, they are disposable devices specified for national and international fresh food shipments.

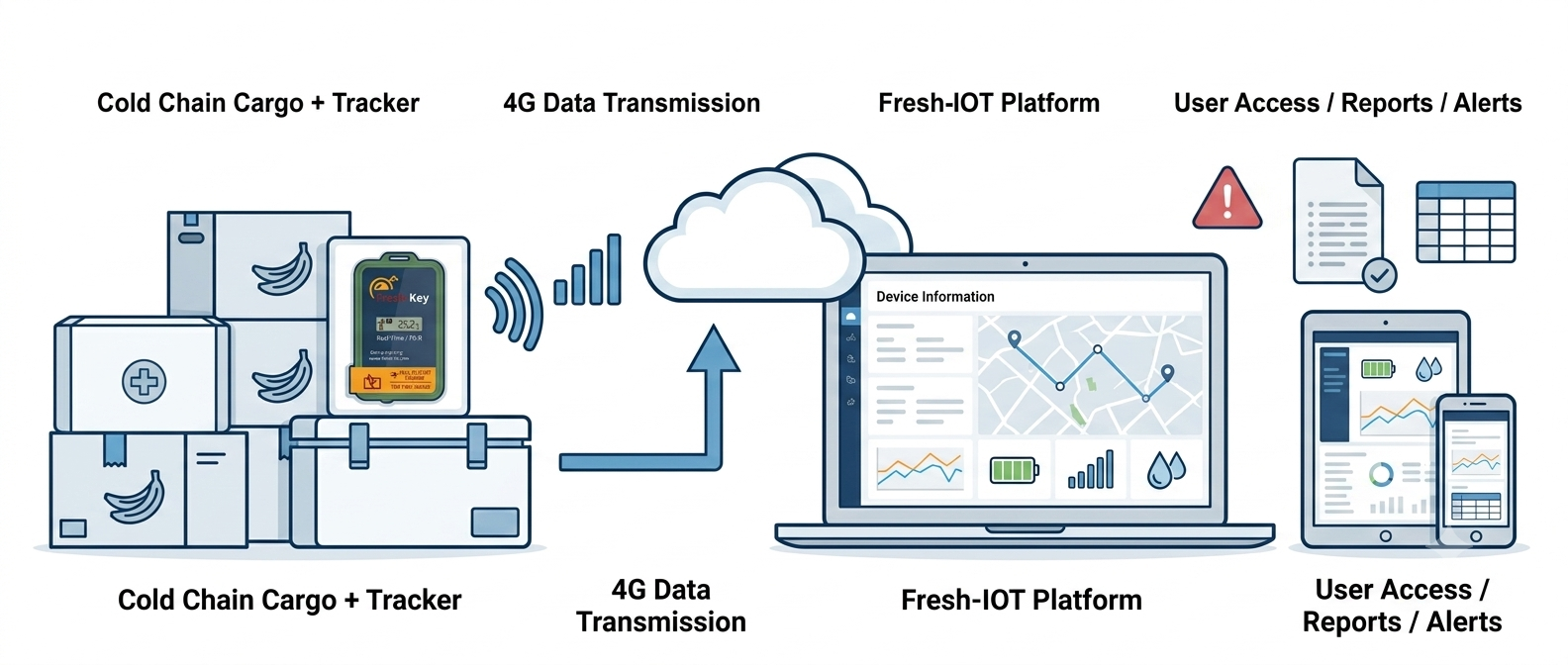

With only one button operation, they are quite easy to be deployed. While they are working, you can track all temperature, humidity and location information of your shipment online through any web browser.
You may also register with our online system to manage multiple shipments, maintain all history and collaborate with your partners.
Fresh-key RT
Real-time GPRS temperature and location data logger
校准的温度数字传感器
位置信息、地理围栏、运行轨迹
从平台下载PDF和CSV报告
自动连接Fresh-IOT追踪平台
网络连接覆盖超200多个国家
NIST, PTB和NPL国际认证
校准的温度、湿度数字传感器
位置信息、地理围栏、运行轨迹
从平台下载PDF和CSV报告
自动连接Fresh-IOT追踪平台
网络连接覆盖超200多个国家
NIST, PTB和NPL国际认证
Real-time GPRS temperature, humidity and location data logger
Fresh-key RTH
Data Logger Type
Real-Time temperature Humidity Location and Light data logger
Real-time GPRS temperature, humidity, location and Light data logger
校准的温度、湿度、光感数字传感器
位置信息、地理围栏、运行轨迹
从平台下载PDF和CSV报告
自动连接Fresh-IOT追踪平台
网络连接覆盖超200多个国家
NIST, PTB和NPL国际认证
Fresh-key RTHL
User Guide
Detailed introduction to the recorder and usage method to let users understand it faster
Alert LED
Working LED
Log Duration
Device Type
Device ID
Real Time Tracking Online Platform
Start Tab
Device Type
Expiry Date
Device Bar Code
Device Name
User Guide
Contact Information
LED Instruction
• Green LED flashes once every ten seconds- Running Mode
• Green LED flashes once every ten seconds - Abnormal Communication
• Red LED flashes - Fuction abnormal
How to place
• Place the device directly into the package;
• RT device can also be placed in the enclosed sticky bag and attach on the pallets of the container.
Other Notes
• Do not place the device around the fire source to avoid battery damage;
• Do not seal the Fresh-key RTH/RTHL device with plastic packaging,otherwise the humidity collection accuracy will be affected.
How to use
• Pull out the strip at the bottom of the device to start;
• Log inhttp://www.fresh-iot.com，type in the device ID to track the current temperature humidity and location status;
• In case of abnormal communication or battery issue,please do not use the device and report it through the contact information on the back of the device for replacement.
网络制式
850/900/1800/1900 MHz GSM/GPRS
续航能力*
15天，每隔15分钟上传温度、湿度和位置数据，可重复充电使用
LED灯
蓝色运行, 红色异常
主机尺寸*
53mm*85mm*16mm
毛重
0.25 lbs (110 g)
SIM卡*
内置（出厂标配）
本地数据记录
测温范围
测湿范围
12000条，循环记录，覆盖
-20°C ~ +60°C 内置探头 -20°C ~ +60°C 外置探头
0%～99%
±5% (20%~80%) ±8% (其他范围)
±0.5°C (-10~+60°C) ±2°C (Other range)
LBS基站定位
测湿精度
测温精度
定位方式
60天，每隔60分钟上传温度、湿度和位置数据，可重复充电使用
认证
FCC, UL, RoHs, CE, Food grade material (ABS)
*May vary due to different environments.
Technical Parameter
Add Device
Enter the device number in the input box, click the button behind to add.
02
Log/Register
Users with existing accounts directly enter their email password to log in；
New users need to do a simple email verification to join the platform.
01
03
Create Waybill
After the equipment is successfully added, click the green "New Waybill" button at the end of the list to create the waybill.
04
View Real-time Data and Freight Information
After the waybill is created successfully, the bound device will display detailed equipment information, waybill information, map information, etc.
Invite other users to participate in the waybill, manage files, and upload photos；
Export PDF and Excel reports, etc.
Application Industry
Products can be used to monitor fruits and vegetables/seafood, medicine, biotechnology, chemicals, etc.
