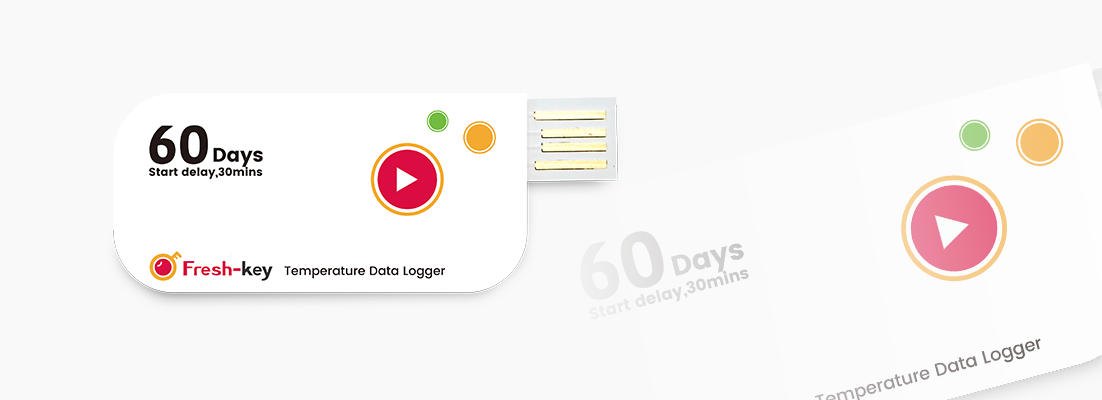

Fresh-key Single-use USB Temperature Data Logger
Fresh-key USB Temperature Data Logger is a single-use data logger designed for temperature recording during cold chain transportation.
Built with a digital temperature sensor, the logger is suitable for temperature-sensitive shipments such as fresh produce, seafood, pharmaceuticals, frozen food, chilled products, and other cold chain cargo. Users can start the device with one button and place it inside the product package or shipping container to record temperature data during transportation.
After the shipment arrives, users can connect the logger to a computer to automatically generate a PDF temperature report. No software installation is required.
Key Features
- Single-use design
- USB connection to computer
- Automatic PDF & CSV temperature report
- No software required
- Digital temperature sensor
- One-button operation
- IP67 / NEMA 6 protection
- Suitable for food-grade packaging and cold chain shipments
- Slim and lightweight design
- Customizable log interval and log cycle
Product Details
Fresh-key USB Temperature Data Logger helps customers record complete temperature data during transportation.
The logger can be placed inside product packaging, cartons, insulated boxes, refrigerated containers, or shipping cartons to record temperature changes throughout the shipment. After transportation, users can connect the logger to a computer and access the automatically generated PDF report.
This product is suitable for cold chain applications that require temperature traceability, quality control, exception review, and shipment data records. It is widely used for fresh produce, seafood, pharmaceuticals, and other temperature-sensitive cargo.
Typical Applications
- Fresh produce exports
- Seafood transportation
- Pharmaceutical cold chain
- Frozen and chilled food
- Fresh food distribution
- Temperature-sensitive cargo transportation
- Quality control and temperature traceability
How to Use
1. Press the Button to Start
Press the device button to start the logger and begin temperature recording.
2. Place the Logger in the Package
Attach or place the logger inside the product package, insulated box, or shipping container.
3. Connect to PC for Report
After transportation, connect the logger to a computer to automatically generate a PDF temperature report.
Technical Specifications
| Specification | Fresh-key USB Temperature Data Logger |
|---|---|
| Logger Type | Single-use USB temperature data logger |
| Temperature Range | -30°C to +70°C |
| Temperature Accuracy | ±0.5°C / 0.9°F |
| Temperature Resolution | 0.01°C / °F |
| Sensor | Digital sensor, Texas Instruments |
| Data Storage Capacity | 14,400 readings |
| Shelf Life | 24 months |
| Log Interval | Customizable, minimum 1 second |
| Log Cycle | Customizable, maximum 90 days |
| Start Mode | Manual |
| Stop Mode | USB connection / data limit |
| Protection Class | IP67 / NEMA 6 |
| Dimensions | 72 × 28 × 5 mm |
| Weight | Approx. 10 g |
| Calibration Certificate | NVLAP NIST traceable, United States |
| Report Type | PDF & CSV |
| Report Source | Self-generated, no software needed |
Product Advantages
- Simple operation for batch use
- No training required
- Automatic PDF & CSV report generation after USB connection
- Supports temperature data traceability after shipment
- Helps customers review temperature exceptions during transportation
- Slim and lightweight design for easy placement inside packages
Note
Design and specifications may vary depending on production batch and customer requirements. Please contact Fresh-key for the latest technical specifications before purchase or use.
